Interconnecting Flood Panels and Barriers
The Mayim™ flood control barrier is an easy to deploy flood control system. If you are looking for a durable, efficient, and quick dam for protection for your building or facility, the Mayim™ Flood Barrier is the solution.
Protect against heavy rains, severe storms, swelling rivers and flash floods by deploying your Mayim water diversion and flood control barriers.
With our simple insert and lock connection system, Mayim flood barrier panels connect seamlessly to create a complete flood protection system. Gain the ability to quickly deploy a durable flood wall that is built specifically for active flood threats. Achieve protection heights of 20”, 30” and 40” (Mayim MAX) to handle a variety of flood levels.
Protect what’s important to you, use the Mayim flood prevention system.
Up to 40” of Protection Height
Rapid Installation
Full Perimeter Protection
Be Protected Against a Flood Disaster
When it comes to flooding, there is no limit to vulnerable spaces that need protection. Mayim™ acts as a portable flood barrier, assisting in protecting a variety of sites and applications such as...
Flood and Emergency Response
Property Management
Home and Office Perimeters
Loading Dock and Warehouse Entryways
Public Transit and Municipal Buildings
Power Plants and Electrical Substations
Agricultural Operations and Field Protection
Server/Technology Centers
Museums and Public Assembly Facilities
Electric Vehicle Fire Submersion Pools LEARN MORE
How Mayim™ Works
1) Water Pressure Creates Support
As water rises, Mayim flood barriers are kept in place due to the weight of water, which presses the L-shaped barriers into the ground below and against the adjacent panel, providing ballast, increasing the seal and enhancing grip.
2) Sealing Off Leakage
The foam seals on the underside and edge of each Mayim flood barrier helps to minimize potential leakage and seepage of water while flood panels are deployed.
3) Damming Ability
Mayim flood walls comes in 20in and 30in heights. Panels are designed to contain and redirect water and provide significant protection against severe flood threats.
Video About The Mayim™️ Flood Control Barrier
Learn about the Mayim™ flood wall system, its installation, key differentiators and the various uses for this flood barrier for flood protection, prevention and mitigation.
How Mayim™️ Flood Control Barriers Work to Divert Water and Hold Back Flooding
Why Protect Against Flooding With Mayim™ Flood Control Barriers?
No extra tools or materials required
Flexible design flood panels fit your protection needs
Reusable for future flooding events
Supports the emergency plan for your building, facility and municipality
Compactly stores and takes up minimal space
Easily deploy as mobile flood barriers when minutes matter the most
Stop and redirect water to prevent damaging
Stands tall against rising water and a variety of flood types
Durable
Built specifically to protect against several flooding threats
Easy to Store and Transport
Save time, labor and space with compact storage and easy deployment
3 Heights
Available in 20”, 30” (MB1/MB2) and 40” (Mayim MAX) protection heights to fit your flooding needs.
Reusable
Always have your go to flooding solution on hand for future flooding threats
Contains
Block problematic flood water from reaching what is important.
Diverts
Keeps flooding away from vulnerable areas around your facility.
Simple Set Up
Stage
Gather the compactly stored Mayim™ Barriers and transport them to the installation site.
Manually carry panels or use a dolly, pickup, or forklift to move panels to the desired flood protection area.
Position
Start connecting Mayim™ Flood Barriers from left to right for easiest connection process.
Keep the “L” shape of of Mayim facing outwards towards the expected flood.
Connect
Tip the flood barrier at an angle and slide the bottom foot connector prong into the receiver loop on the adjacent panel.
Tip flat and connect sections by snapping male connector tabs on top into female receiver slots.
Accessories
Seal to Wall With Gable Ends
Designed to complete a run of Mayim™ Barriers, against a fixed wall, to create a seal against leakage.
Position End Gable against the wall with the foam seal tightly abutting the wall
Lock the next panel into position and continue the run of flood barriers.
For added support and a better seal, add a weighted sandbag on each gable.
Create Inward Curves
Add inward curves to flood barrier runs using the MB1 or MB2-IC panel
Use to go around obstacles or building features
Each section creates a 30 degree inward turn.
3 sections connected create a 90 degree turn
Create Outward Curves
Add inward curves to flood barrier runs using the MB1 or MB2-OC panel
Use sections go around obstacles or building features
Use when creating a doorway opening flood gate
Each section creates a 30 degree inward turn.
3 sections connected create a 90 degree turn
Frequently Asked Questions
-
-
Visit The Mayim Flood Barrier Installation Webpage or Download the Mayim™️ Barrier Installation Guide
-
The Mayim barrier designed to be installed by unskilled personnel and no tools are required for assembly or dismantling. Sections are stacked neatly for use and can be hand carried to the site or transported in a stack or on a pallet. Installation uses Mayim’s unique tip, click, and lock system, which requires no additional resource.
-
Yes, we do have a 40” tall Mayim™ MAX Flood Barrier- Item #MB-MAX. Please contact sales for more information.
-
Besides for the increase in flood protection height of 40”, Mayim MAX includes a PVC flap that adheres to uneven surfaces and uses a specialized Spring Loaded Locking Mechanism.
-
The Mayim Barrier is manufactured using high quality ABS Material that is injection molded. Panels are molded with structural support ribs, which serve as buttresses to strengthen the barrier, so that it can handle the tremendous pressures and weight of water.
-
While we recommend setting up the barrier when needed and breaking down after use, the barriers are UV protected to protect against material degradation and color fading.
-
The Mayim Barrier’s material has an operating temperature range of -10 to 115F, so it can be used in extreme cold and heat.
-
All Mayim barriers have a neoprene seal on the underside and along the sides of each panel, which create a seal with the ground below and the adjacent panel. When water levels rise, the weight enhances the the seal by increasing the downward and outward pressure.
-
Each Mayim barrier can be adjusted 3 degrees in either direction. For larger turns, such as 90 degree turns around a building, use our MB1/2 Outward and Inward turn sections. Each provide 33+ degrees of turn and 3 placed side-by-side create a 90 degree turn.
-
There are 2 flood wall systems to choose from. The MB1, 20” panel, will protect against 19" of water, and the MB2, 30” panel, will protect against 29" of water.
-
We recommend staging the barriers on a dolly for ease of transport, but they are lightweight enough to carry a few pieces at a time, by hand. For larger projects, you can store and transport panels on standard shipping pallets.
-
Mayim Barriers are designed to be deployed quickly by unskilled personnel. Each barrier weighs between 6 and 21 lbs, allowing nearly anyone to move sections into position. The locking mechanism is easy and intuitive, allowing for deployment of approximately 3 sections per minute, or roughly 15 minutes for 100ft of protection.
-
The Mayim barrier has built in flexibility, allowing it to turn slightly, even when using only Straight (MB1/MB2) sections. There is a 3 degree flexibility in the design, in either direction, meaning you can use the connection system to slightly turn sections. You can also utilize inward and outward curved sections (MB1-IC/OC and MB2-IC/OC) to create more dramatic turns or to make corners (use 3 units to make a 90 degree turn in either direction).
-
We recommend using our End Gables to abut a Mayim flood barrier to a fixed wall. The helps seal off a run of barrier and create a tight seal. The thick foam on Gable Ends works to create a seal against uneven surfaces such as brick, cinder block, or stucco. An alternative to Gable Ends it to use poly-sheeting and duct tape to seal the small gap between a Mayim barrier and a wall. See instructions for more information on creating a proper seal.
-

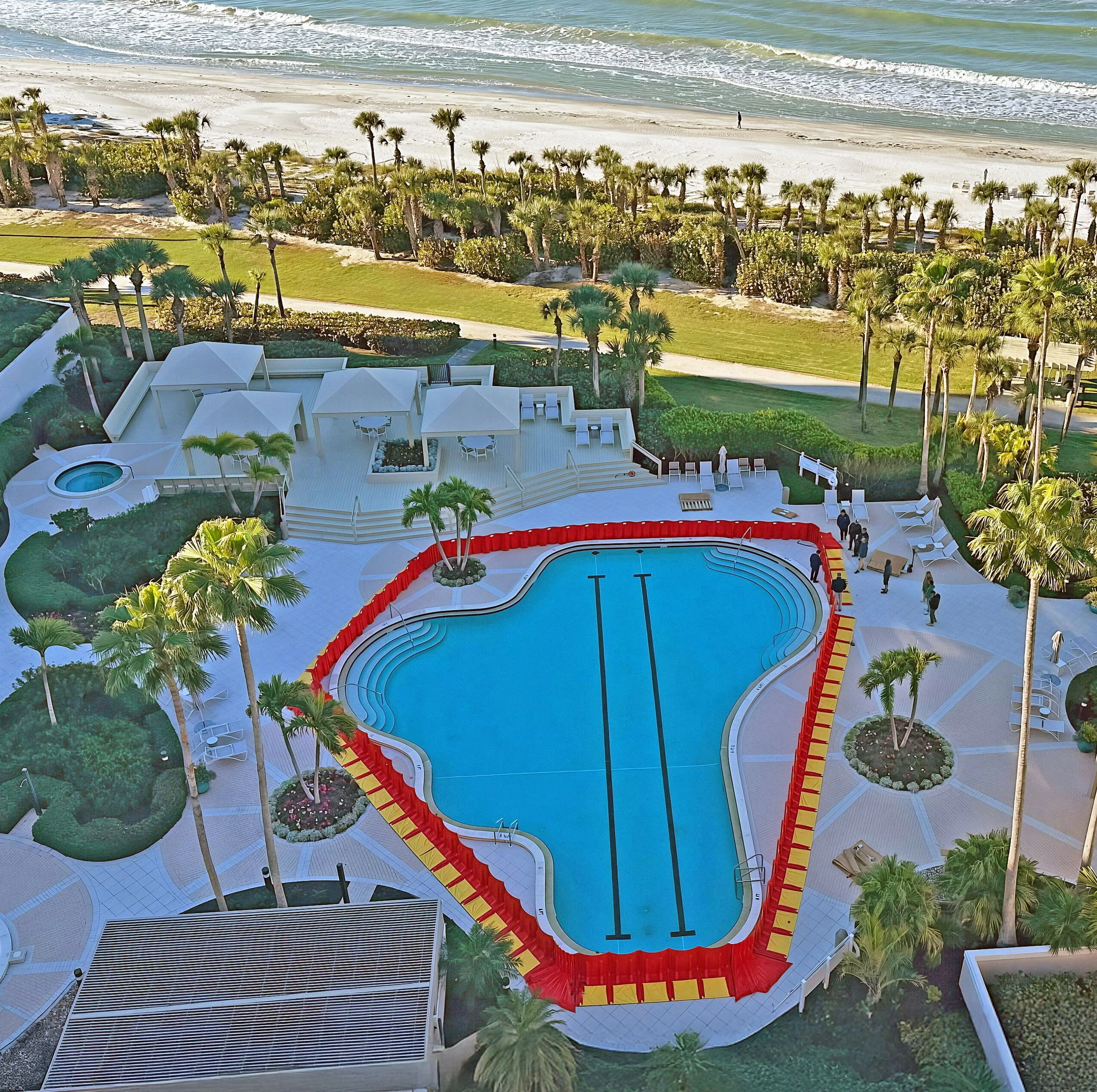

The Mayim barrier is ideal for creating a containment pool, using a variety of our straight barriers and curved sections to create a pool sized for your needs. If a pool is needed to contain chemicals, we suggest adding a poly-sheet liner to prevent any unwanted leakage.
-
You can hose down the panels after use, making sure to clear away any stuck on debris or stains. Standard household cleaners can be used to clean stubborn dirt. Stack sections after they are completely dry.
-
All products currently ship from our regional warehouse in Santa Fe Springs, California
-
Contact Us and speak with a flood specialist today to determine the number and type of panels that are right for you, or check out our Flood Shop and view pre-designed kits to fit a variety of needs.
Foam Seals On Underside
Flexible Design
Flood Barriers Stack Compactly
Side and Back of Gable End
